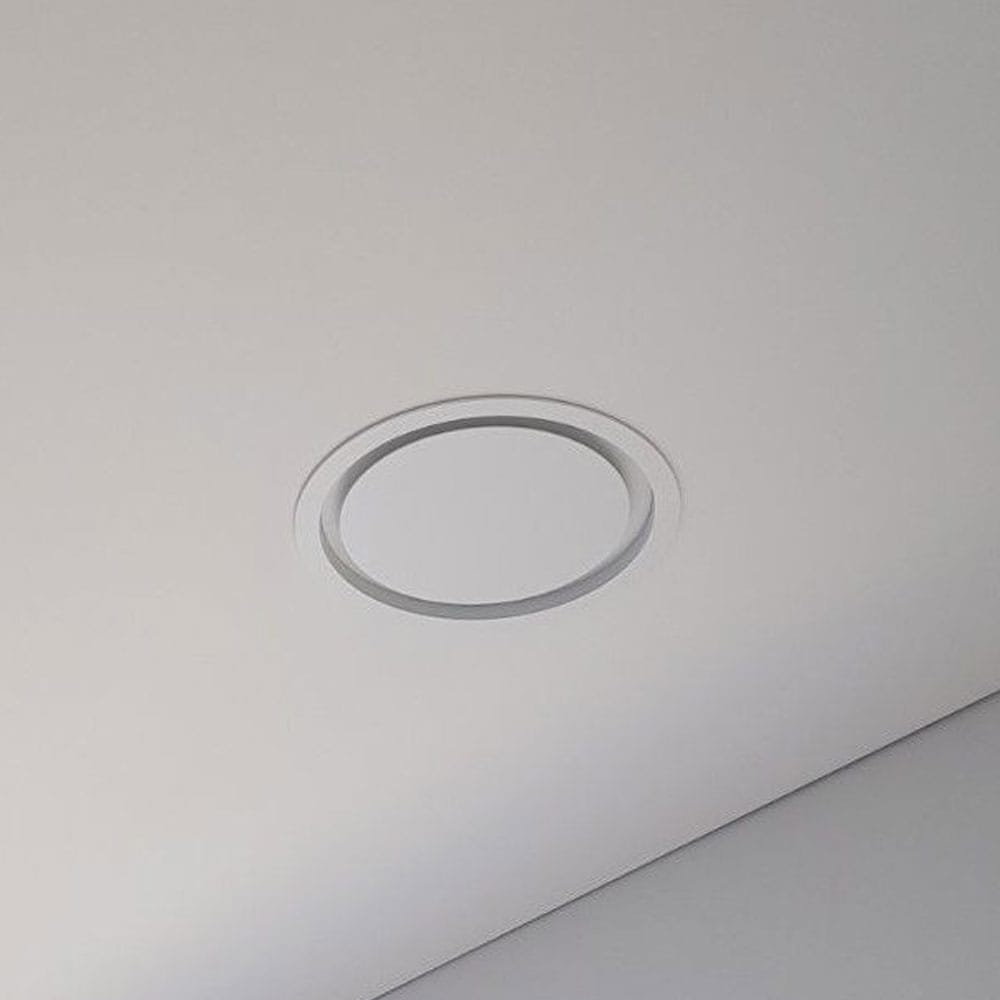

Conventional solution
The component becomes a visible object.
- Visible grille or frame
- Interrupts clean ceiling lines
- Technical appearance dominates
Diffuser for stretch ceiling DRS 2x75
79,99 €
Connection2 x D75 mm
AirflowCoanda effect
IntegrationStretch ceiling
In stock
Ready for pickup or dispatch
Designed and manufactured in Lithuania
Secure checkout
Technical support for installers

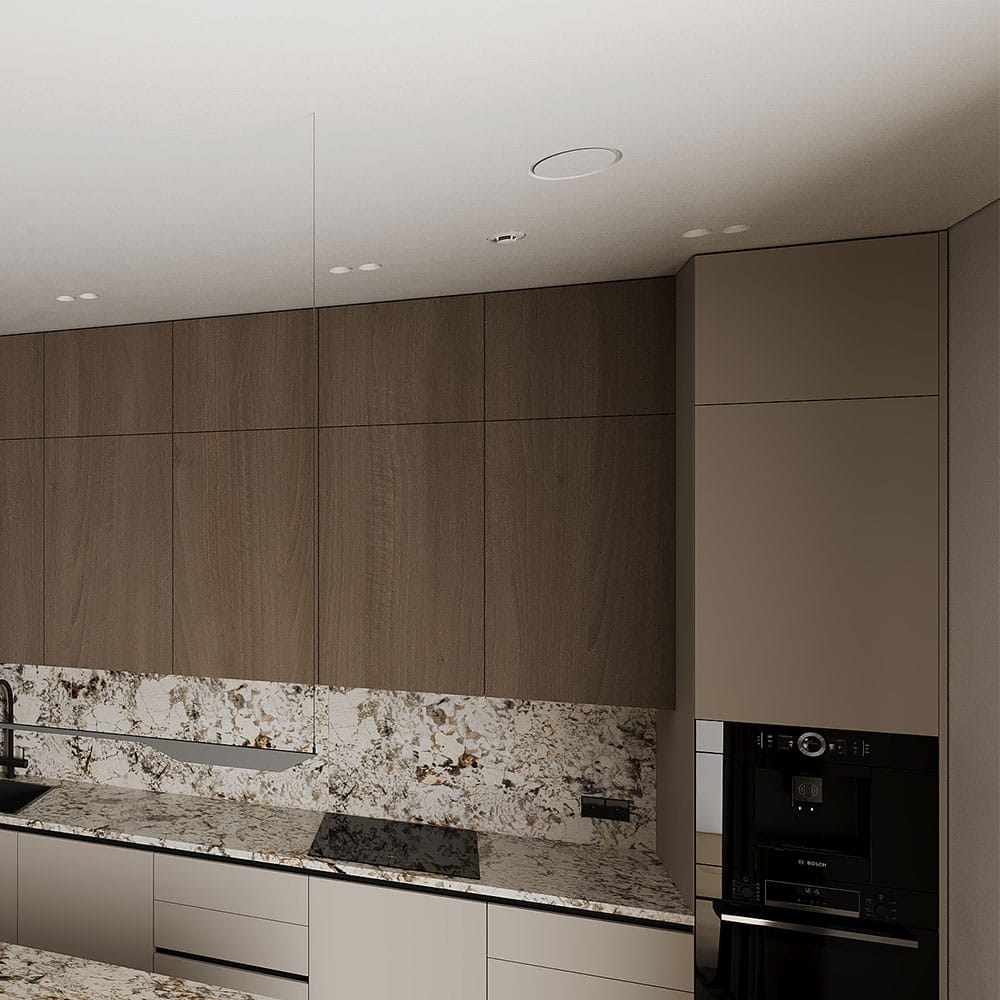

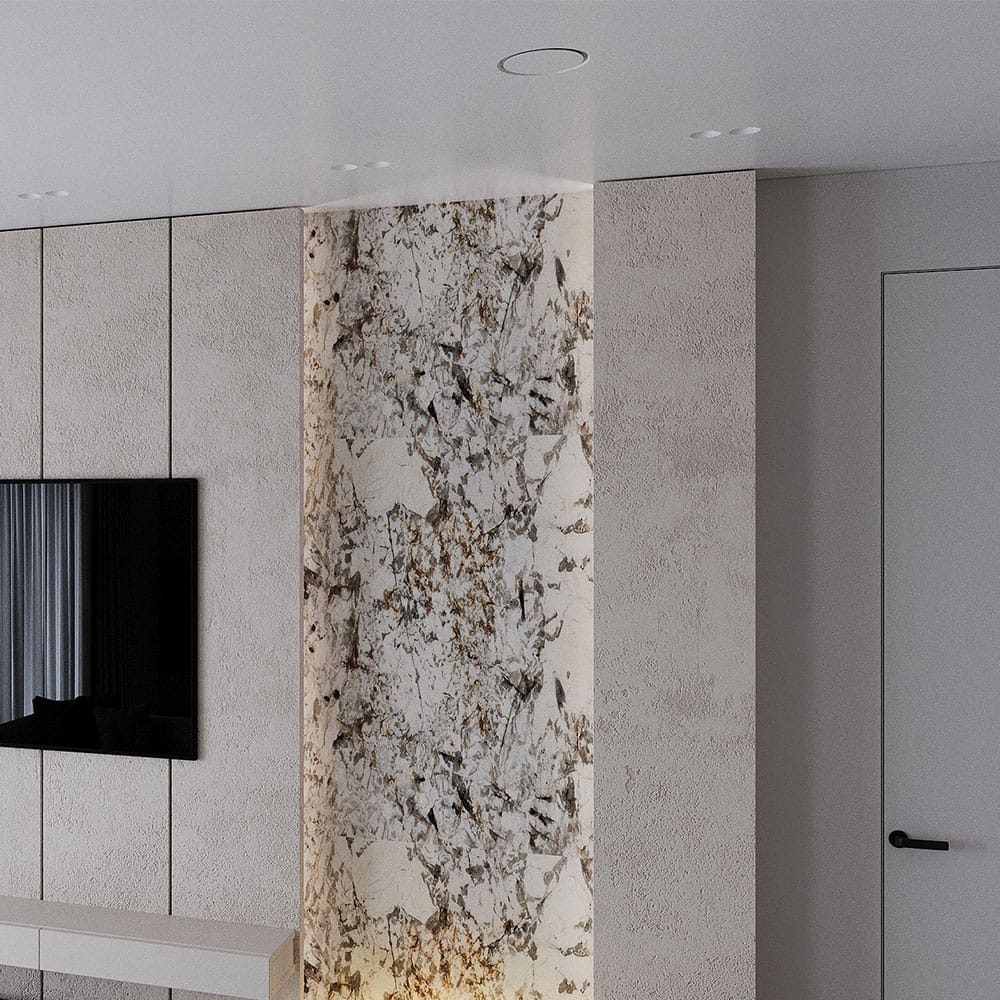

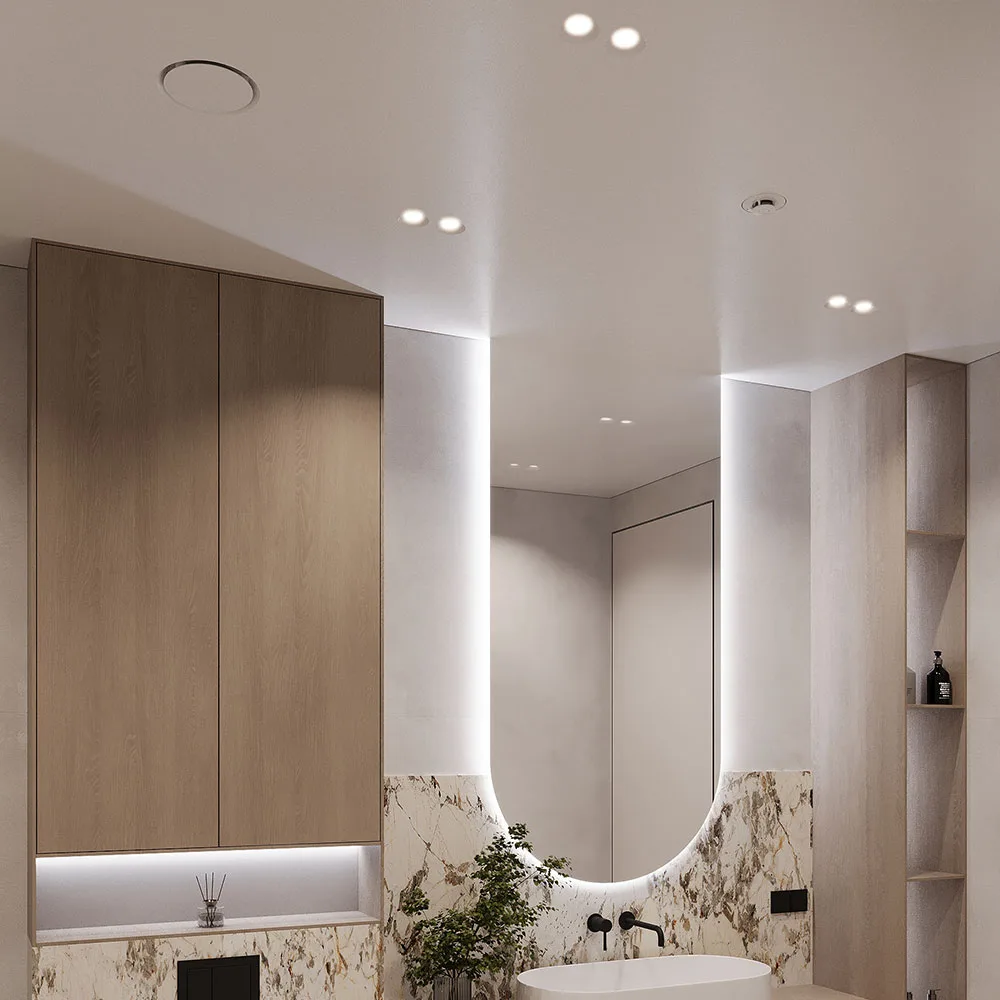

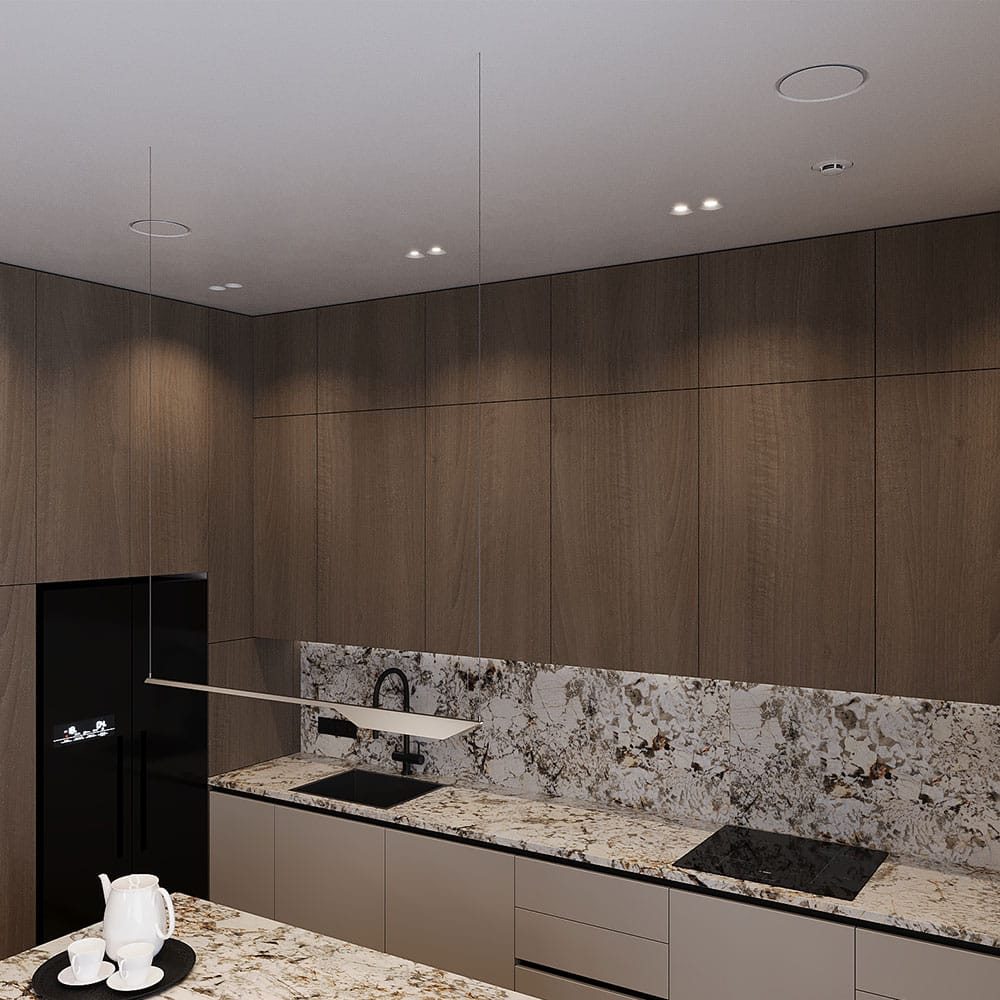

Invisible by design
The technology stays. The visual noise disappears.
Conventional ceiling components become part of the interior whether they are meant to or not. Conceiling products are engineered to perform their technical role while leaving the ceiling visually calm and uninterrupted.

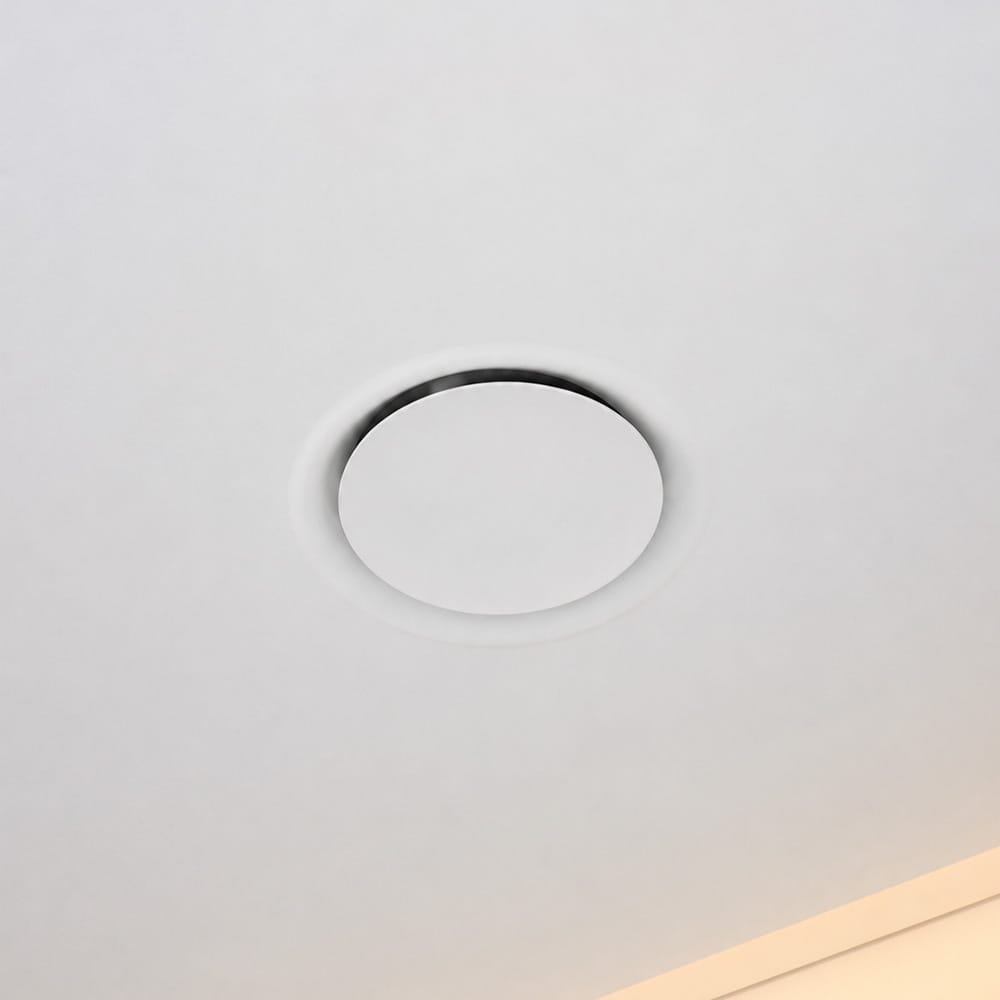

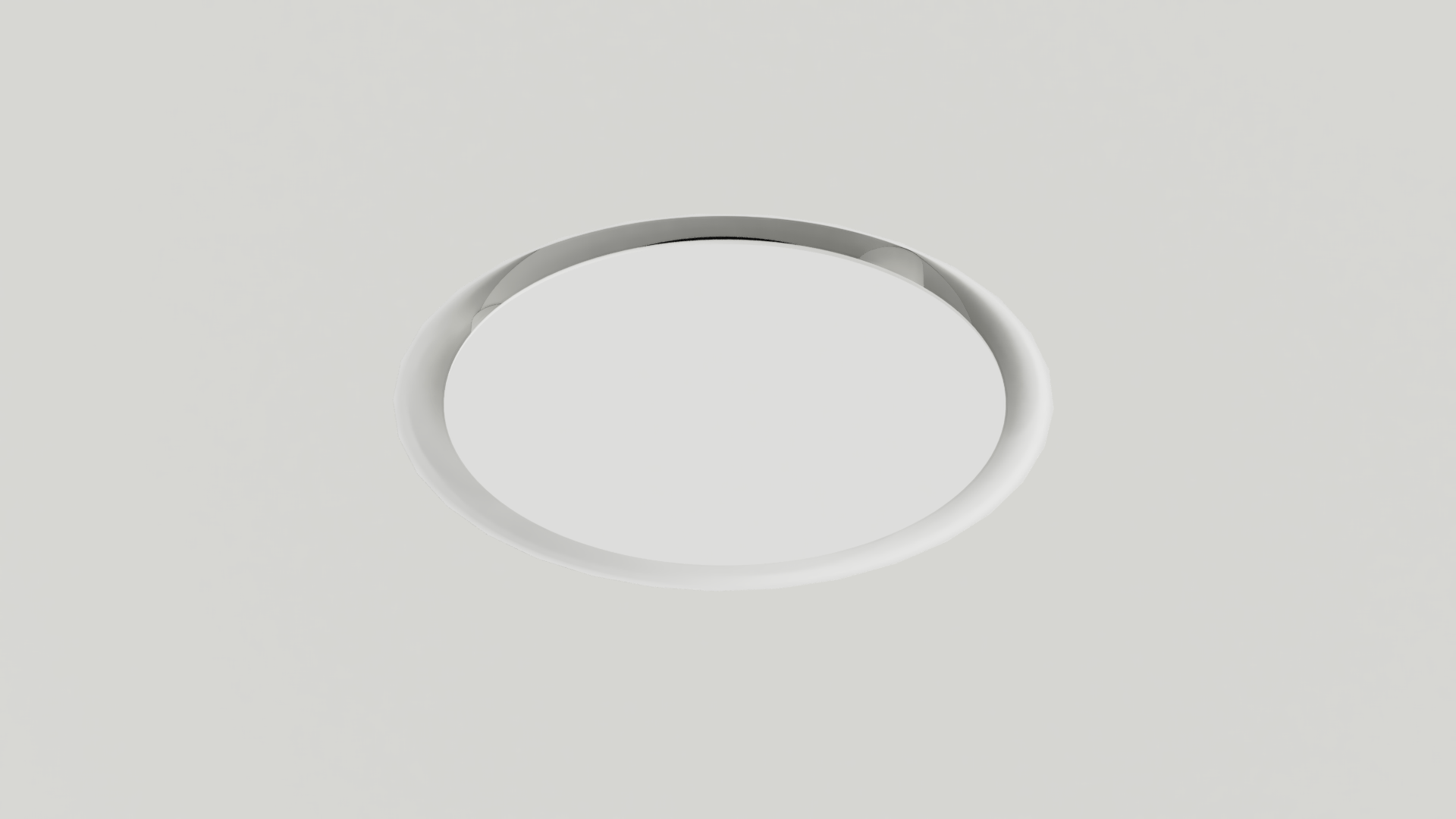

Conceiling approach
The surface remains the main visual element.
- Frameless visual integration
- Calm, uninterrupted surface
- Designed for modern interiors
Engineered performance
Airflow that follows the ceiling.
The diffuser geometry directs air along the ceiling surface using the Coanda effect. This supports more comfortable air distribution and reduces the sensation of a direct downward draught.
Product overview
Why choose Diffuser for stretch ceiling DRS 2x75?

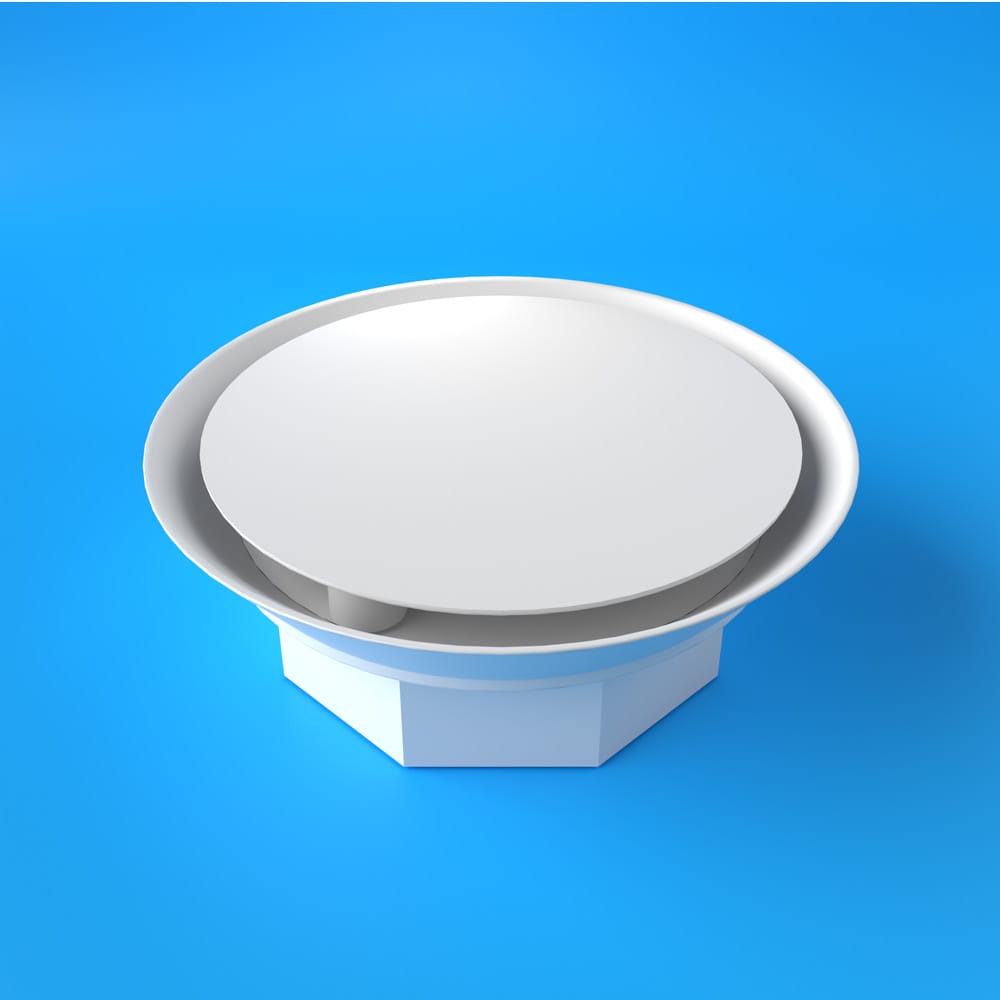

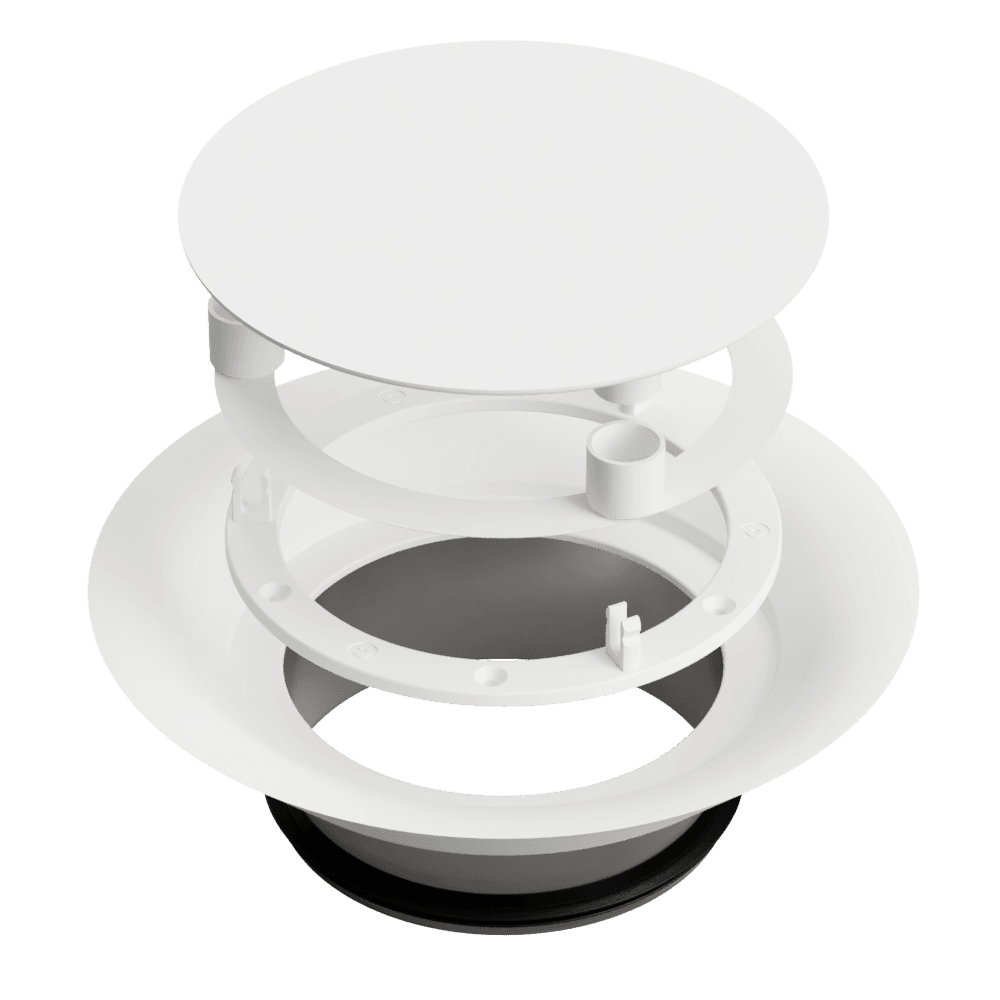

Conceiling DRS 2×75 diffuser is designed for installation with stretch ceilings. It is manufactured with an integrated low-profile diffuser box, thanks to which the product fits into a height of 94mm. The box is fixed to the ceiling. After tensioning the stretch ceiling, it is pressed against the diffuser body with a clamping ring using the screws with countersunk heads included in the kit. To facilitate clamping, it is recommended to heat the ceiling. The remaining ceiling residue in the middle is cut off and the diffuser cover with screw cover is placed on the clamps on the clamping ring. The cover has a textured pattern that matches the texture of the most popular ceilings. The white shade of the cover matches the shades of the most commonly installed ceilings, e.g. MSD Premium. In case of a significant color mismatch, a stretch ceiling film can be easily glued onto the diffuser cover. Thanks to the unique diffuser design, the air flow is directed sideways along the ceiling, rather than straight down, thus avoiding unpleasant direct air drafts. The diffuser can be designed above sensitive areas, such as a bedroom bed, living room sofa or work desk.
Technical information
Technical specifications
Use these values when coordinating the product with the system, ceiling build-up and installation drawings.
Installation ceiling typeStretch ceiling
Air flow distribution typeCoanda effect
Connection diameter2 x D75 mm
Front housing height30 mm
Full height with box93 mm
Full length with box272 mm
Front housing shapeRound
Front housing external dimensions201 x 201 mm
Maximum recommended air flow60 m3/h
PurposeAir supply and air exhaust
Installation
Everything needed for a confident installation.
Review the product dimensions, installation sequence and connection requirements before the stretch ceiling is installed.
Questions
Frequently asked questions
Is this product suitable for both supply and extract air?
Check the stated airflow application in the technical specification for the selected model.
What connection size is required?
Use the connection diameter or low-profile connection configuration listed in the technical specifications.
What airflow is recommended?
Use the recommended airflow shown in the technical data and coordinate it with the ventilation design and acceptable sound level.
Can the visible surface be matched to the ceiling?
The visible element is designed for subtle integration into the stretch ceiling. Confirm the selected finish and installation method before ordering.
Where should the diffuser be positioned?
Positioning depends on the room airflow design, furniture and supply/extract strategy. Coordinate the final location before the ceiling is installed.
Can the diffuser be serviced after installation?
The visible cover is designed to remain removable so the component can be accessed for inspection and cleaning.
