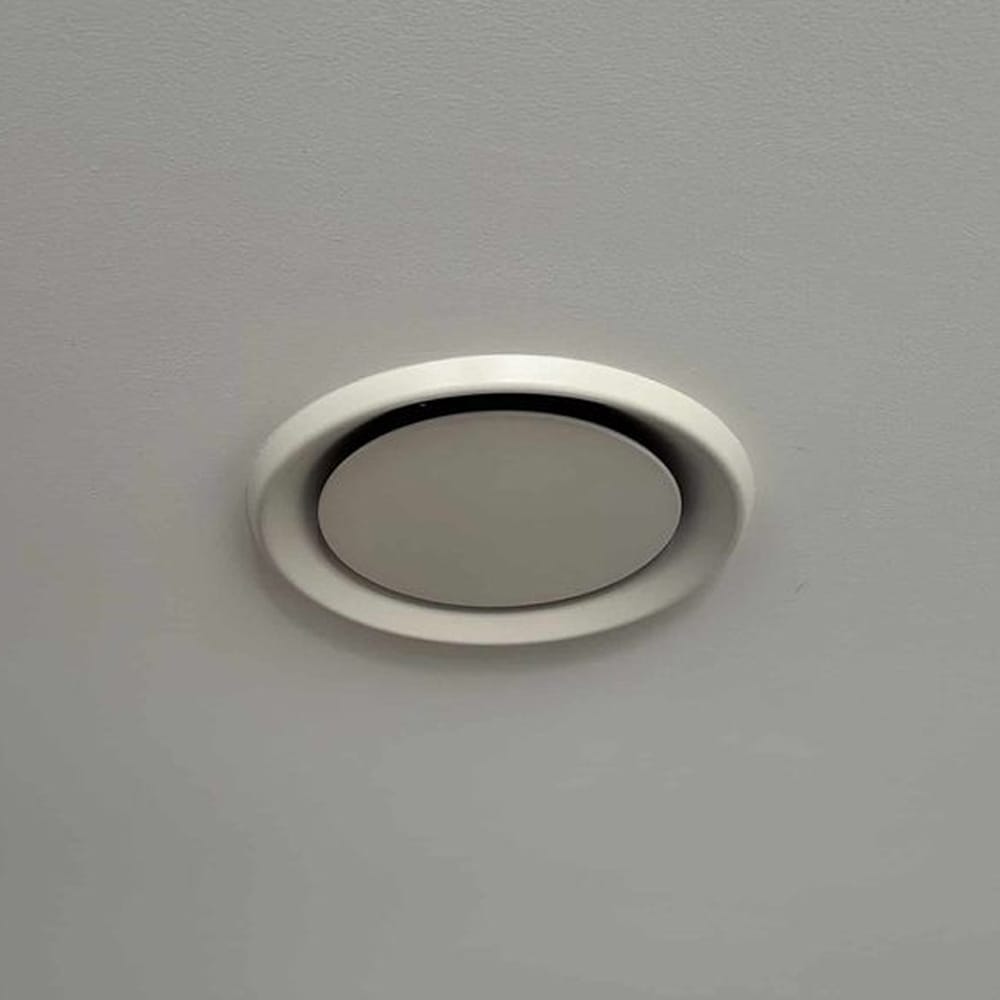

Conventional solution
The component becomes a visible object.
- Visible grille or frame
- Interrupts clean ceiling lines
- Technical appearance dominates
Diffuser for stretch ceiling DRS 125
49,99 €
DRS 125 is designed to integrate technical performance into a calm, uninterrupted ceiling surface.
Connection125 mm
Airflowup to 90 m3/h
IntegrationStretch ceilings
IN STOCK
Ready for pickup or dispatch
Designed and manufactured in Lithuania
Secure checkout
Technical support for installers

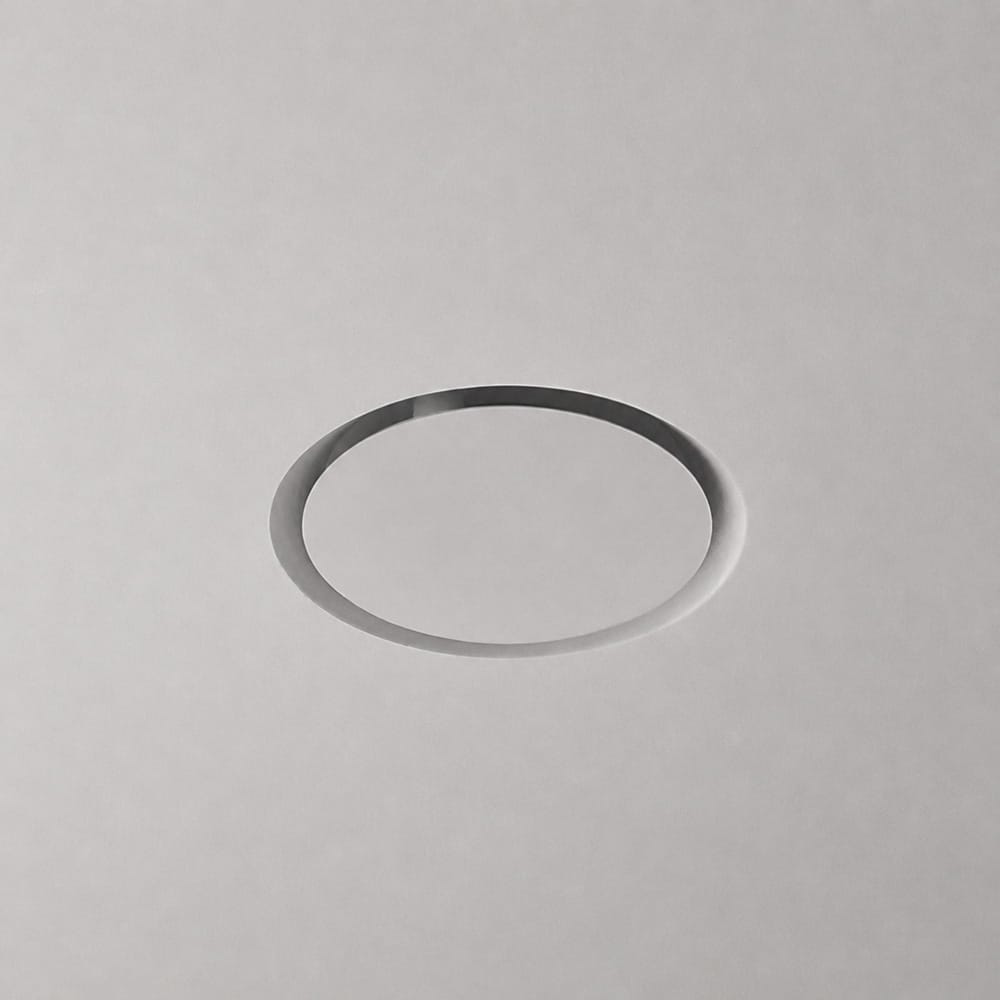

Invisible by design
The technology stays. The visual noise disappears.
Conventional ceiling components become part of the interior whether they are meant to or not. Conceiling products are engineered to perform their technical role while leaving the ceiling visually calm and uninterrupted.
Conceiling approach
The surface remains the main visual element.
- Frameless visual integration
- Calm, uninterrupted surface
- Designed for modern interiors
Engineered performance
Airflow that follows the ceiling.
The diffuser geometry directs air along the ceiling surface using the Coanda effect. This supports more comfortable air distribution and reduces the sensation of a direct downward draught.
Product overview
Why choose DRS 125?
Conceiling DRS 125 is a frameless ventilation diffuser developed specifically for integration into stretch ceilings. Instead of appearing as a conventional ventilation grille, it becomes part of the ceiling surface, helping to preserve clean architectural lines and a calm, uninterrupted interior.
Read full product information+
The diffuser features a standard 125 mm duct connection and is suitable for both supply and extract air systems. Its geometry directs airflow sideways along the ceiling using the Coanda effect, reducing the sensation of direct downward draughts and supporting more comfortable air distribution throughout the room.
DRS 125 is designed for projects where technical performance and interior aesthetics are equally important. The visible textured white cover complements common stretch ceiling finishes. Where a closer visual match is required, the cover can be adapted using compatible ceiling material or an appropriate paint finish.
The diffuser body is installed before the stretch ceiling membrane is tensioned. During the final installation stage, the membrane is secured using the dedicated pressing ring, after which the fixing points are concealed by the decorative cover. This creates a precise, frameless appearance without visible conventional grilles.
DRS 125 is particularly suitable for:
- residential interiors where ceiling details should remain discreet;
- offices, hospitality and commercial spaces with a minimalist architectural concept;
- new ventilation installations using compatible 125 mm connections;
- renovation projects where conventional visible diffusers are being replaced with a more integrated solution.
With a recommended airflow of up to 90 m³/h, DRS 125 combines discreet ceiling integration, controlled airflow distribution and practical installation in one purpose-designed product.
Technical information
Technical specifications
Use these values when coordinating the product with the system, ceiling build-up and installation drawings.
Product codeDRS 125
Connection diameter125 mm
Housing height30 mm
Height with connection70 mm
Housing external dimensions201 x 201 mm
ShapeRound
Recommended air flowup to 90 m3/h
Installation
Everything needed for a confident installation.
Review the product dimensions, installation sequence and connection requirements before the stretch ceiling is installed.
Questions
Frequently asked questions
Is this product suitable for both supply and extract air?
Check the technical specification for the supported airflow application.
What connection size is required?
The required connection diameter is 125 mm.
What airflow is recommended?
The recommended airflow is up to 90 m3/h.
Can the visible surface be matched to the ceiling?
The visible element is designed to integrate with a stretch ceiling. Confirm the selected finish and installation method before ordering.
