Conventional solution
The component becomes a visible object.
- Visible grille or frame
- Interrupts clean ceiling lines
- Technical appearance dominates
Diffuser for stretch ceiling DRS 100
49,99 €
DRS 100 is designed to integrate technical performance into a calm, uninterrupted ceiling surface.
Connection100 mm
Airflowup to 60 m3/h
IntegrationStretch ceilings
IN STOCK
Ready for pickup or dispatch
Designed and manufactured in Lithuania
Secure checkout
Technical support for installers
Invisible by design
The technology stays. The visual noise disappears.
Conventional ceiling components become part of the interior whether they are meant to or not. Conceiling products are engineered to perform their technical role while leaving the ceiling visually calm and uninterrupted.
Conceiling approach
The surface remains the main visual element.
- Frameless visual integration
- Calm, uninterrupted surface
- Designed for modern interiors
Engineered performance
Airflow that follows the ceiling.
The diffuser geometry directs air along the ceiling surface using the Coanda effect. This supports more comfortable air distribution and reduces the sensation of a direct downward draught.
Product overview
Why choose DRS 100?

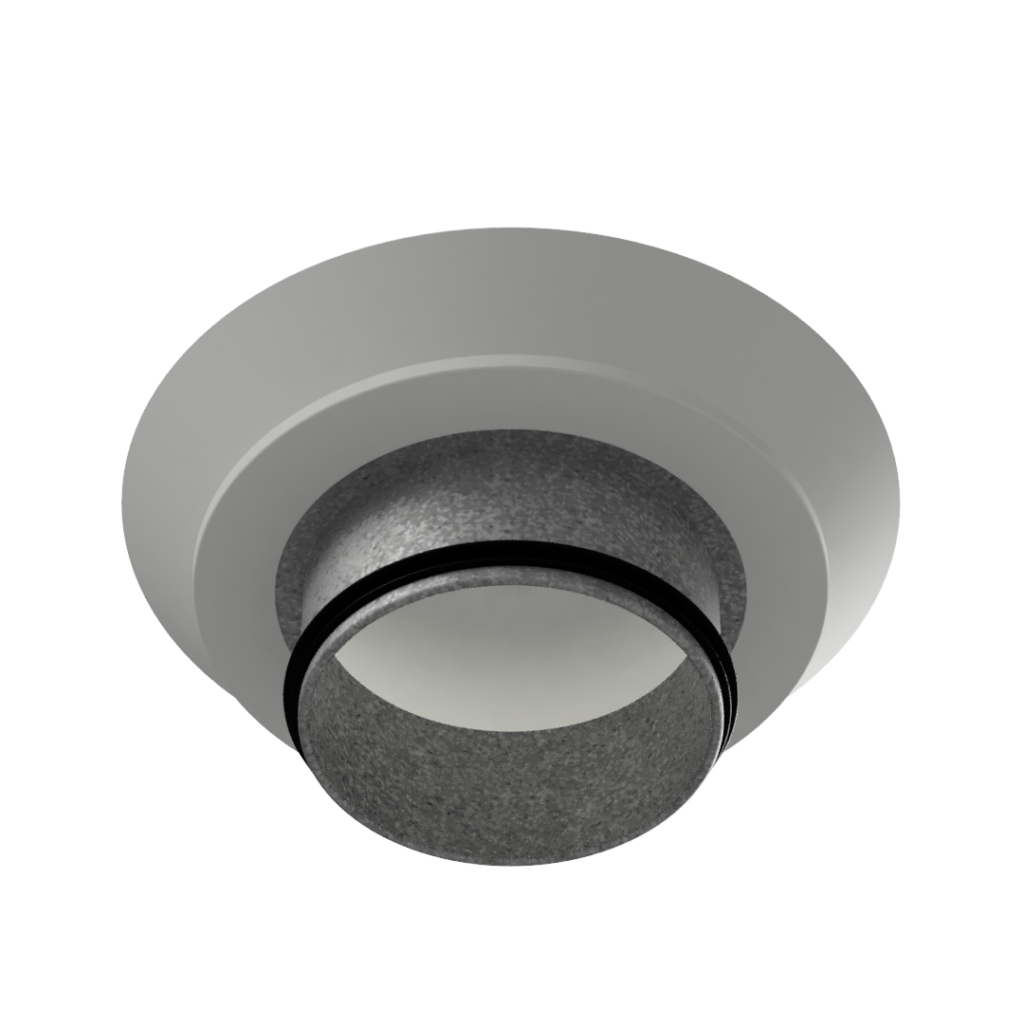

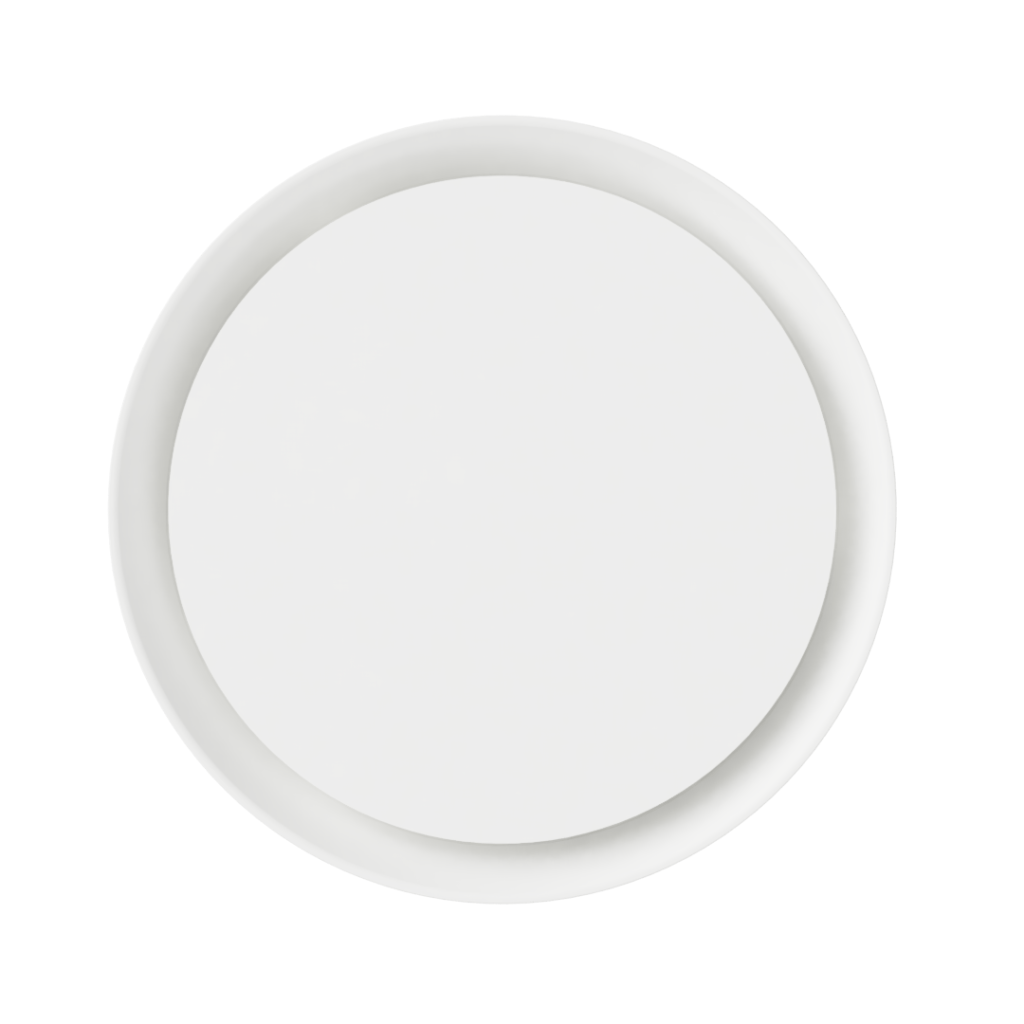

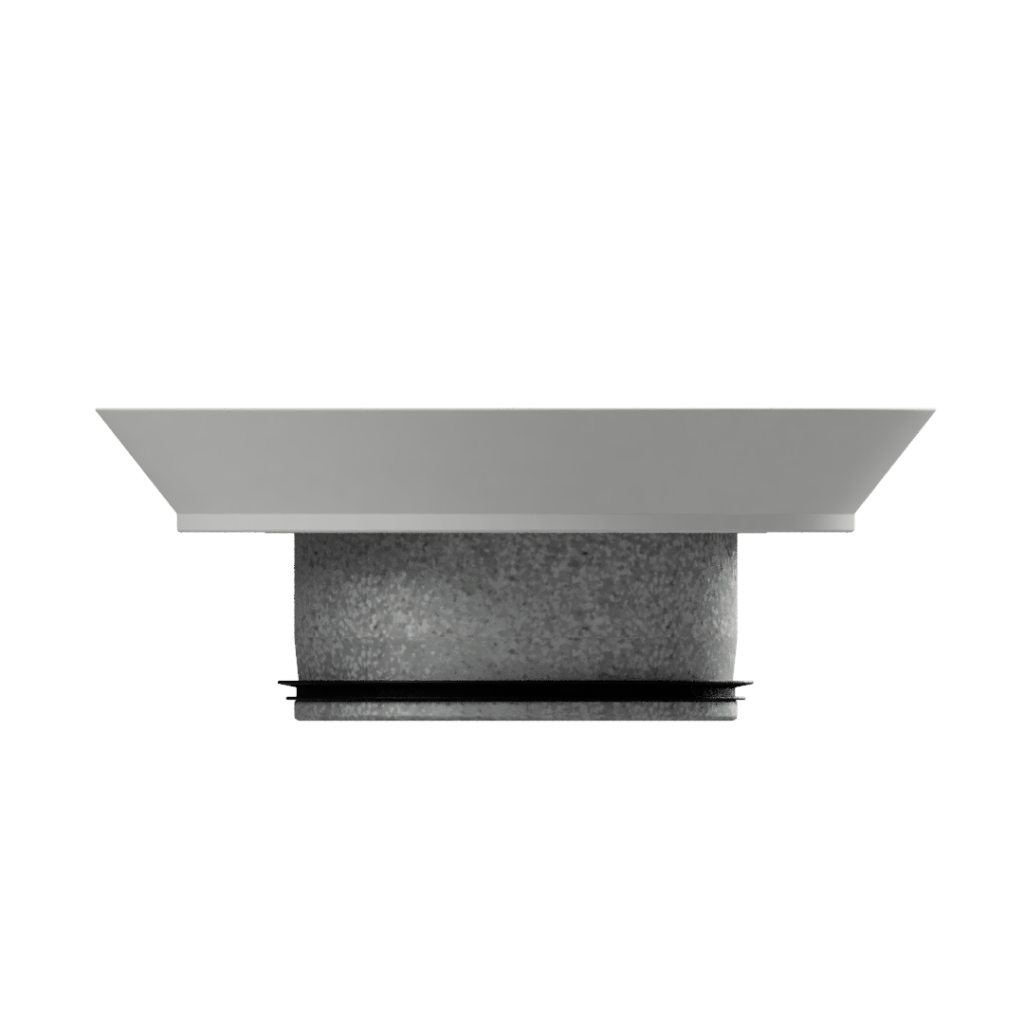

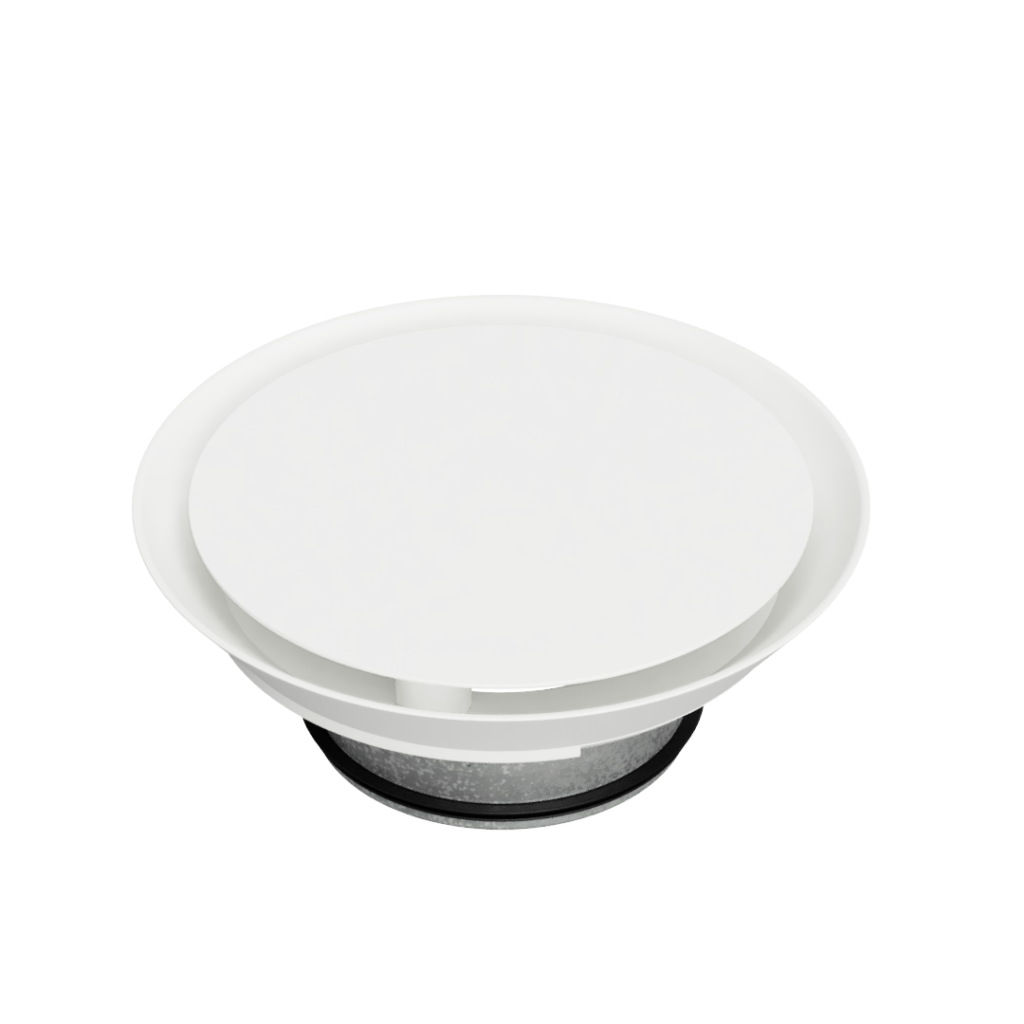

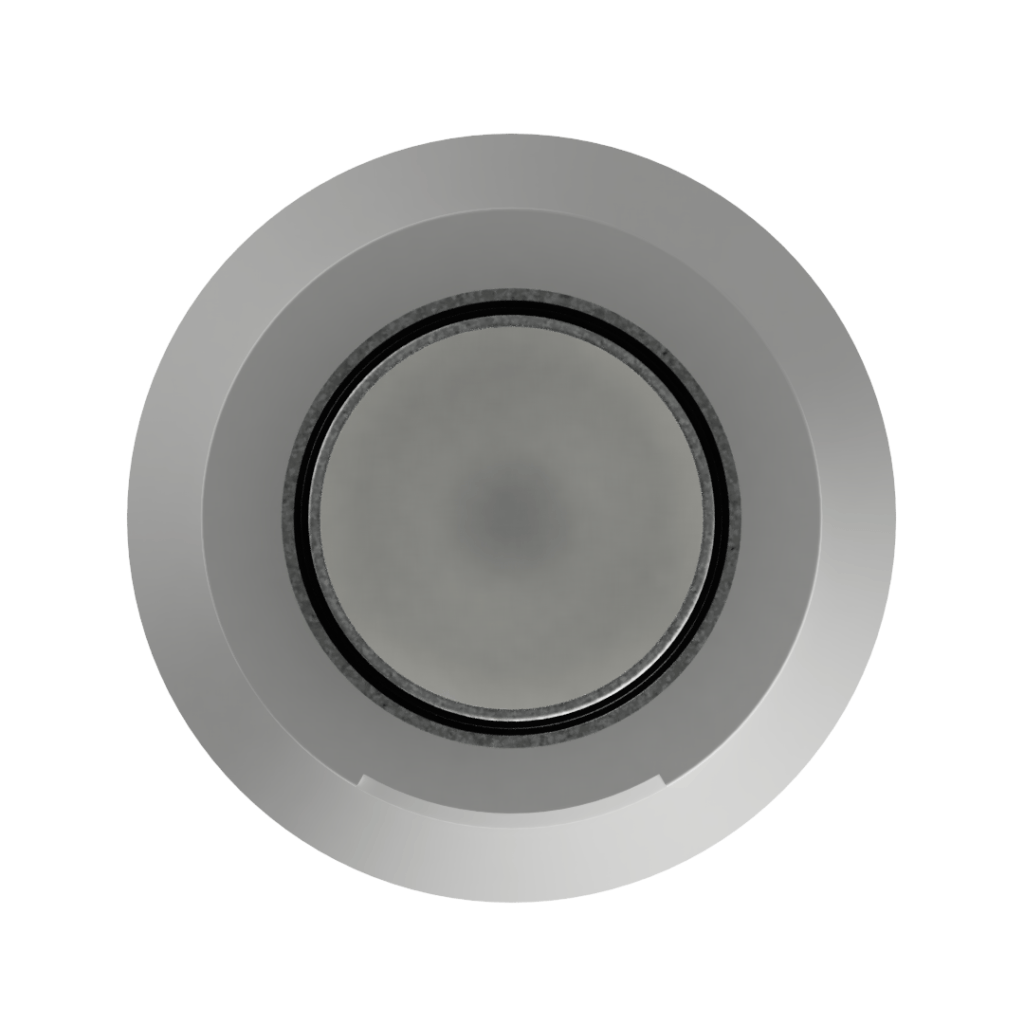

Conceiling DRS 100 diffuser is designed for installation with stretch ceilings. It can be installed in any diffuser box or a spiral duct, and after leveling it is fixed in the final position with screws. After tensioning the stretch ceiling, it is pressed against the diffuser body with a clamping ring using the screws with countersunk heads included in the kit. To facilitate clamping, it is recommended to heat the ceiling. The remaining ceiling residue in the middle is cut off and the diffuser cover with screw covers is placed on the clamps on the clamping ring. The cover has a textured pattern that matches the texture of the most popular ceilings. The white shade of the cover matches the shades of the most commonly installed ceilings, e.g. MSD Premium. In case of a significant color mismatch, the same stretch ceiling film can be easily glued onto the diffuser cover. Thanks to the unique diffuser design, the air flow is directed sideways along the ceiling, rather than straight down, thus avoiding unpleasant direct air drafts. The diffuser can be designed above sensitive areas, such as a bedroom bed, living room sofa or work desk.
Technical information
Technical specifications
Use these values when coordinating the product with the system, ceiling build-up and installation drawings.
Product codeDRS 100
Connection diameter100 mm
Housing height30 mm
Height with connection72 mm
Housing external dimensions201 x 201 mm
ShapeRound
Recommended air flowup to 60 m3/h
Installation
Everything needed for a confident installation.
Review the product dimensions, installation sequence and connection requirements before the stretch ceiling is installed.
Questions
Frequently asked questions
Is this product suitable for both supply and extract air?
Check the technical specification for the supported airflow application.
What connection size is required?
The required connection diameter is 100 mm.
What airflow is recommended?
The recommended airflow is up to 60 m3/h.
Can the visible surface be matched to the ceiling?
The visible element is designed to integrate with a stretch ceiling. Confirm the selected finish and installation method before ordering.
