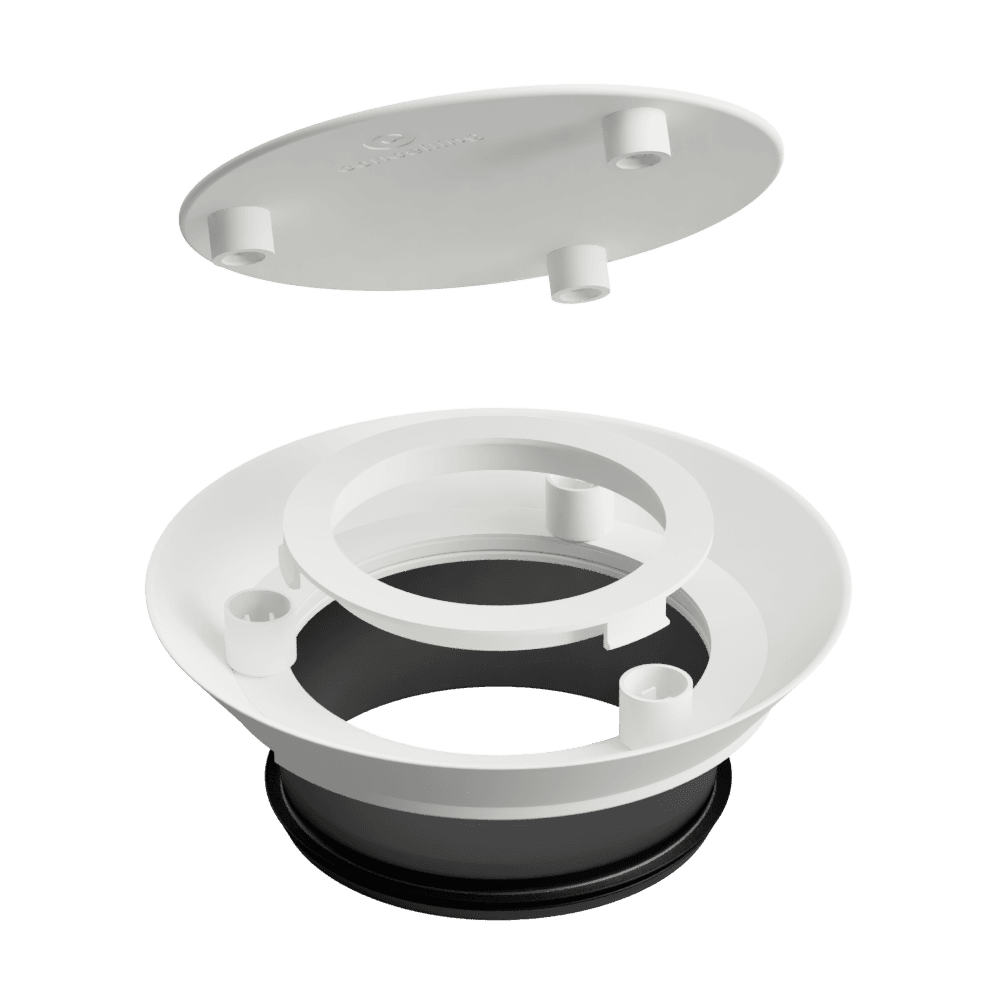

Diffuser for stretch ceiling DRS 125 Wave

59,99 €

DRS 125 Wave is designed to integrate technical performance into a calm, uninterrupted ceiling surface.

Connection125mm

EdgeRounded

IntegrationStretch ceilings

IN STOCK Ready for pickup or dispatch

Pick up nowRudmenos g. 5-3, Kaunas

Delivery in 1 business dayWithin Lithuania via Autobusų siuntos

Designed and manufactured in Lithuania

Secure checkout

Technical support for installers

SKU: DRS 125 Wave Delivery calculated at checkout

Invisible by design

The technology stays. The visual noise disappears.

Conventional ceiling components become part of the interior whether they are meant to or not. Conceiling products are engineered to perform their technical role while leaving the ceiling visually calm and uninterrupted.

DRS 125 Wave conventional comparison close-up

Conventional solution

The component becomes a visible object.

Visible grille or frame
Interrupts clean ceiling lines
Technical appearance dominates

DRS 125 Wave Conceiling comparison close-up

Conceiling approach

The surface remains the main visual element.

Frameless visual integration
Calm, uninterrupted surface
Designed for modern interiors

Engineered performance

Airflow that follows the ceiling.

The diffuser geometry directs air along the ceiling surface using the Coanda effect. This supports more comfortable air distribution and reduces the sensation of a direct downward draught.

Technical information

Technical specifications

Use these values when coordinating the product with the system, ceiling build-up and installation drawings.

PDFTechnical data sheetOpen product document↗ DoPDeclaration of performanceOpen declaration↗

Product codeDRS 125 Wave

Connection diameter125 mm

Housing height30 mm

Height with connection70 mm

Housing external dimensionsx x x mm

ShapeRound

EdgeRounded

Recommended air flowup to 90 m3/h

Installation

Everything needed for a confident installation.

Review the product dimensions, installation sequence and connection requirements before the stretch ceiling is installed.

Installation diagramOpen image Need technical help?Contact the Conceiling team

Questions

Frequently asked questions

Is this product suitable for both supply and extract air?

Check the technical specification for the supported airflow application.

What connection size is required?

The required connection diameter is 125 mm.

What airflow is recommended?

The recommended airflow is up to 90 m3/h.

Can the visible surface be matched to the ceiling?

The visible element is designed to integrate with a stretch ceiling. Confirm the selected finish and installation method before ordering.
